Patio Doors
UPVC EUROPEAN WINDOWS AND DOORS
Our original uPVC windows are the result of our in-house development department and research laboratory. All profiles are A-class, made exclusively from primary material. More than 30 veneer colours provide the perfect match for any architectural style. Millions of satisfied customers and independent experts all over the world have recognised the highest quality, excellent thermal and sound insulation parameters, high aesthetics of workmanship, durability and reliability of our PVC joinery
HERE ARE SOME OF THE ADVANTAGES OF USING THIS ADVANCE SYSTEM
Secure ventilation option free of water leaks
Easy one-handed operation
Due to the side hinge the window opens all the way which provided great egress point
Simple cleaning from inside your home at any time
Great energy efficiency with optional triple glazed system and 7 champers
Multi Point MACO system for extra security and insulation
Non standard designs and large format windows / doors
ENERGY ULTRA WINDOWS
Innovative, original 7- chamber A-class profile made exclusively from primary material. The world’s first system using a central gasket made of foamed EPDM, which is a guarantee of the best energy-saving parameters. Energy Ultra and Energy Ultra Classic windows are distinguished by excellent water tightness parameters, air permeability and wind resistance.

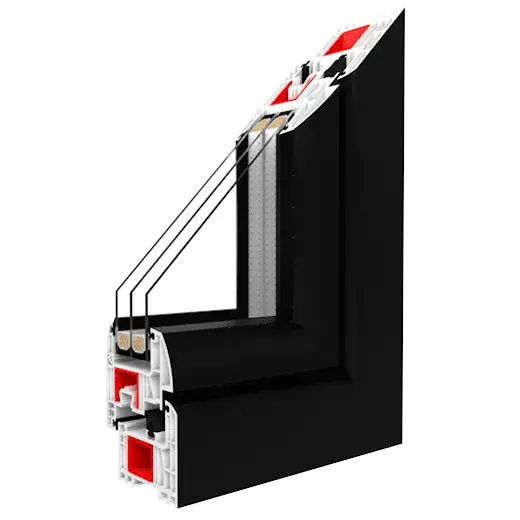

SYSTEM STRUCTURE
7-chamber frame and sash profiles, with an installation depth of 3 1/4". The system is equipped with a specially designed triple gasket: external and internal with EPDM and central with foamed EPDM.
ENERGY INFO
U factor = .15
Solar Heat Gain Coefficient =.33
SYSTEM STRUCTURE
Innovative, original 7- chamber A-class profile made exclusively from primary material. The world’s first system using a central gasket made of foamed EPDM, which is a guarantee of the best energy-saving parameters. Energy Ultra and Energy Ultra Classic windows are distinguished by excellent water tightness parameters, air permeability and wind resistance.
ENERGY INFO
U factor = .27
Solar Heat Gain Coefficient =.42
STANDARD :
MACO MULTI-MATIC KS fittings with 2 anti-theft strikers with Silber-Look anticorrosion coating for long-lasting protection and smooth operation of the fitting
sash lifter (lifting mishandling device - depending on window height) & aluminium handle
microventilation in tilt and turn windows
hinge covers in 4 colours: white, silver, light brown, brown
3-glazed (2-chamber) units infilled with argon gas, with Ug = 0.5 W/(m²K)
glass-pane spacer made of galvanised steel
2 EPDM gaskets (external and internal) + 1 central gasket made of foamed EPDM, gaskets available in black
gasket filling the lower fittings groove & profile core in white
2 mm full (closed) steel frame reinforcement, „c” shaped steel sash reinforcement
5-chamber PVC under-sill trim with gasket
ADDITIONAL OPTIONS
option of using glazed units with a thickness from 24 mm to 40 mm
3-glazed (2-chamber) units, infilled with argon gas, with Ug = 0.6 W/(m²K)
option of using glass panes with improved sound insulation, laminated (safety and anti- burglary), ornamental, solar control, mirror and sandblasted
option of using the Swisspacer Ultimate glass-pane spacer, available in 3 colour variants: black, grey, brown
option of using MACO Multi-Power concealed hinges in the fittings groove (not visible when the window is closed)
wide range of colours of decorative films, option to cover the window on both sides (two the same or different colours) or only one side
option of selecting gaskets in grey
handles for floating mullion windows
option of using full (closed) steel reinforcement in the frame
hinge covers in custom colours: titanium, champagne, cream, black and gold
turn lock
option of selecting a profile core in brown
option of making windows in V-Perfect technology (so called thin welding)
RC2 Resistance class can be achieved, 4 strikers, MAX fittings
MACO tilt mechanism
option of using ventilators
option of using 27 mm, 45 mm or 65 mm wide PVC glued on muntin bars and 8 mm, 18 mm, 26 mm or 45 mm wide aluminium internal muntin bars
wide range of additional profiles (connectors, extensions, sill profiles)
